OpenOnload 技术

固件信息

可以通过命令查看当前的网卡连接情况

ip address

1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: enp5s0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 4c:ed:fb:c2:25:67 brd ff:ff:ff:ff:ff:ff
    inet 192.168.1.115/24 brd 192.168.1.255 scope global noprefixroute dynamic enp5s0
       valid_lft 1496sec preferred_lft 1496sec
    inet6 fe80::6804:b02d:fb9f:19b0/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
3: enp1s0f0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen 1000
    link/ether 00:0f:53:5d:d3:90 brd ff:ff:ff:ff:ff:ff
4: enp1s0f1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 00:0f:53:5d:d3:91 brd ff:ff:ff:ff:ff:ff
    inet 192.168.1.112/24 brd 192.168.1.255 scope global noprefixroute dynamic enp1s0f1
       valid_lft 1544sec preferred_lft 1544sec
    inet6 fe80::20f:53ff:fe5d:d391/64 scope link
       valid_lft forever preferred_lft forever
5: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000
    link/ether 52:54:00:c5:0a:77 brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0
       valid_lft forever preferred_lft forever
6: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc pfifo_fast master virbr0 state DOWN group default qlen 1000
    link/ether 52:54:00:c5:0a:77 brd ff:ff:ff:ff:ff:ff

厂商的MAC地址前四位是00:0F,以此判断哪个网卡为Solarflare的网卡。因此,我们可以看出以下两个网卡为 Solarflare

  • enp1s0f0
  • enp1s0f1

我们还可以通过命令查看具体的网卡信息

## 需要先安装 openonload
ethtool -i enp1s0f1

driver: sfc
version: 4.15.0.1012
firmware-version: 4.7.1.1001 rx1 tx1
expansion-rom-version:
bus-info: 0000:01:00.1
supports-statistics: yes
supports-test: yes
supports-eeprom-access: no
supports-register-dump: yes
supports-priv-flags: yes

下载驱动

OpenOnload 原先是作为一个独立的开发项目存在,在官网可以获取相关的资讯,或者直接进入下载网页获取指定版本的驱动。

https://www.openonload.org/download/

Index of /download/
../
ppc/                                               15-Feb-2016 11:19                   -
sfnettest/                                         29-Oct-2013 15:45                   -
sfptpd_reverse_ptp_preview/                        18-Aug-2017 10:59                   -
sysjitter/                                         30-May-2017 17:08                   -
efx_ioctl_timesync.h                               23-Jun-2016 16:50               10271
openonload-201502-ChangeLog.txt                    01-Mar-2015 11:34               65722
openonload-201502-README.txt                       01-Mar-2015 11:34                3011
openonload-201502-ReleaseNotes.txt                 01-Mar-2015 11:34               11998
openonload-201502-u1-ChangeLog.txt                 30-Mar-2015 16:35               67171
openonload-201502-u1-README.txt                    30-Mar-2015 16:35                3030
openonload-201502-u1-ReleaseNotes.txt              30-Mar-2015 16:35               14761
openonload-201502-u1.tgz                           30-Mar-2015 16:35             3061647
openonload-201502-u1.tgz.md5                       30-Mar-2015 16:35                  59
openonload-201502-u2-ChangeLog.txt                 04-Jun-2015 16:52               70484
openonload-201502-u2-README.txt                    04-Jun-2015 16:52                3161
openonload-201502-u2-ReleaseNotes.txt              04-Jun-2015 16:52               16556
openonload-201502-u2.tgz                           04-Jun-2015 16:52             3081875
openonload-201502-u2.tgz.md5                       04-Jun-2015 16:52                  59
openonload-201502-u3-ChangeLog.txt                 19-Aug-2015 15:54               70604
openonload-201502-u3-README.txt                    19-Aug-2015 15:54                3161
openonload-201502-u3-ReleaseNotes.txt              19-Aug-2015 15:54               16967
openonload-201502-u3.tgz                           19-Aug-2015 15:54             3276190
openonload-201502-u3.tgz.md5                       19-Aug-2015 15:54                  59
openonload-201502.tgz                              01-Mar-2015 11:34             3056445
openonload-201502.tgz.md5                          01-Mar-2015 11:34                  56
openonload-201509-ChangeLog.txt                    06-Oct-2015 16:26               79017
openonload-201509-README.txt                       06-Oct-2015 16:26                3145
openonload-201509-ReleaseNotes.txt                 06-Oct-2015 16:26               10035
openonload-201509-u1-ChangeLog.txt                 01-Feb-2016 15:51               84338
openonload-201509-u1-README.txt                    01-Feb-2016 15:51                3171
openonload-201509-u1-ReleaseNotes.txt              01-Feb-2016 15:51               12329
openonload-201509-u1.tgz                           01-Feb-2016 15:51             3367951
openonload-201509-u1.tgz.md5                       01-Feb-2016 15:51                  59
openonload-201509.tgz                              06-Oct-2015 16:26             3328928
openonload-201509.tgz.md5                          06-Oct-2015 16:26                  56
openonload-201606-ChangeLog.txt                    30-Jun-2016 17:14               90351
openonload-201606-README.txt                       30-Jun-2016 17:14                3162
openonload-201606-ReleaseNotes.txt                 30-Jun-2016 17:14                7501
openonload-201606-preview1.zip                     02-Jun-2016 19:06             4544551
openonload-201606-u1-ChangeLog.txt                 03-Nov-2016 17:33               94806
openonload-201606-u1-README.txt                    03-Nov-2016 17:33                3178
openonload-201606-u1-ReleaseNotes.txt              03-Nov-2016 17:33               13160
openonload-201606-u1.1-ChangeLog.txt               01-Feb-2017 15:01               95339
openonload-201606-u1.1-README.txt                  01-Feb-2017 15:01                3173
openonload-201606-u1.1-ReleaseNotes.txt            01-Feb-2017 15:01               13564
openonload-201606-u1.1.tgz                         01-Feb-2017 15:01             4416893
openonload-201606-u1.1.tgz.md5                     01-Feb-2017 15:01                  61
openonload-201606-u1.2-ChangeLog.txt               16-Mar-2017 16:34               96359
openonload-201606-u1.2-README.txt                  16-Mar-2017 16:34                3196
openonload-201606-u1.2-ReleaseNotes.txt            16-Mar-2017 16:34               14428
openonload-201606-u1.2.tgz                         16-Mar-2017 16:34             4451313
openonload-201606-u1.2.tgz.md5                     16-Mar-2017 16:34                  61
openonload-201606-u1.3-ChangeLog.txt               27-Jun-2017 10:12               97889
openonload-201606-u1.3-README.txt                  27-Jun-2017 10:12                3192
openonload-201606-u1.3-ReleaseNotes.txt            27-Jun-2017 10:12               16072
openonload-201606-u1.3.tgz                         27-Jun-2017 10:12             4916267
openonload-201606-u1.tgz                           03-Nov-2016 17:33             4605605
openonload-201606-u1.tgz.md5                       03-Nov-2016 17:33                  59
openonload-201606.tgz                              30-Jun-2016 17:14             4170978
openonload-201606.tgz.md5                          30-Jun-2016 17:14                  56
openonload-201710-ChangeLog.txt                    10-Oct-2017 15:32              108975
openonload-201710-README.txt                       10-Oct-2017 15:32                3194
openonload-201710-ReleaseNotes.txt                 10-Oct-2017 15:32                9522
openonload-201710-u1-ChangeLog.txt                 23-Jan-2018 14:58              109112
openonload-201710-u1-README.txt                    23-Jan-2018 14:58                3178
openonload-201710-u1-ReleaseNotes.txt              23-Jan-2018 14:58                9802
openonload-201710-u1.1-ChangeLog.txt               23-Apr-2018 16:08              109283
openonload-201710-u1.1-README.txt                  23-Apr-2018 16:08                3219
openonload-201710-u1.1-ReleaseNotes.txt            23-Apr-2018 16:08               10557
openonload-201710-u1.1.tgz                         23-Apr-2018 16:08             4879299
openonload-201710-u1.1.tgz.md5                     23-Apr-2018 16:08                  61
openonload-201710-u1.tgz                           23-Jan-2018 14:58             4890521
openonload-201710-u1.tgz.md5                       23-Jan-2018 14:58                  59
openonload-201710.tgz                              10-Oct-2017 15:32             4875622
openonload-201710.tgz.md5                          11-Oct-2017 07:50                  56
openonload-201805-ChangeLog.txt                    09-May-2018 08:38              118468
openonload-201805-README.txt                       09-May-2018 08:38                3282
openonload-201805-ReleaseNotes.txt                 09-May-2018 08:38               14680
openonload-201805-u1-ChangeLog.txt                 28-Aug-2018 09:51              118663
openonload-201805-u1-README.txt                    28-Aug-2018 09:51                3276
openonload-201805-u1-ReleaseNotes.txt              28-Aug-2018 09:51               15603
openonload-201805-u1.tgz                           28-Aug-2018 09:51             4659172
openonload-201805-u1.tgz.md5                       28-Aug-2018 09:51                  59
openonload-201805.tgz                              09-May-2018 08:38             4682883
openonload-201805.tgz.md5                          09-May-2018 08:38                  56
openonload-201811-ChangeLog.txt                    03-Dec-2018 23:39              129366
openonload-201811-README.txt                       03-Dec-2018 23:39                3384
openonload-201811-ReleaseNotes.txt                 03-Dec-2018 23:39                8249
openonload-201811-u1-ChangeLog.txt                 02-Jul-2019 10:53              133385
openonload-201811-u1-README.txt                    02-Jul-2019 10:53                3415
openonload-201811-u1-ReleaseNotes.txt              02-Jul-2019 10:53                9679
openonload-201811-u1.tgz                           02-Jul-2019 10:53             4978077
openonload-201811-u1.tgz.md5                       02-Jul-2019 10:53                  59
openonload-201811.tgz                              03-Dec-2018 23:39             4951381
openonload-201811.tgz.md5                          03-Dec-2018 23:39                  56

安装

## 进入相应的文件夹
cd openonload-201811/

## 源代码存放
cd scripts/
ll
total 240K
drwxr-xr-x. 6 fl fl 4.0K Dec  3  2018 .
drwxr-xr-x. 7 fl fl  243 Dec  9 03:39 ..
-rwxr-xr-x. 1 fl fl  154 Apr 12  2018 check_binary_presence
-rwxr-xr-x. 1 fl fl  329 Apr 12  2018 check_header_presence
-rwxr-xr-x. 1 fl fl  358 Apr 12  2018 check_library_presence
-rwxr-xr-x. 1 fl fl  573 Apr 12  2018 check_prototype
-rwxr-xr-x. 1 fl fl 2.2K Nov  8  2018 libc_compat.sh
-rwxr-xr-x. 1 fl fl 1.4K Apr 12  2018 mmake
-rwxr-xr-x. 1 fl fl  16K Nov  8  2018 mmakebuildtree
-rwxr-xr-x. 1 fl fl  15K Nov  8  2018 mmaketool
-rwxr-xr-x. 1 fl fl  13K Nov  9  2018 onload
drwxr-xr-x. 2 fl fl   75 Oct 26  2018 onload_apps
-rwxr-xr-x. 1 fl fl 6.0K Nov  8  2018 onload_build
-rwxr-xr-x. 1 fl fl  27K Dec  3  2018 onload_install
-rwxr-xr-x. 1 fl fl  19K Jul 16  2018 onload_iptables
-rwxr-xr-x. 1 fl fl 8.2K Nov  8  2018 onload_metrics
drwxr-xr-x. 2 fl fl 4.0K Dec  3  2018 onload_misc
drwxr-xr-x. 2 fl fl 4.0K Nov  9  2018 onload_profiles
-rwxr-xr-x. 1 fl fl 2.2K Jul 16  2018 onload_rpmtest
-rwxr-xr-x. 1 fl fl 3.3K Nov  8  2018 onload_tcpdump
-rwxr-xr-x. 1 fl fl 8.0K Nov  9  2018 onload_tool
-rwxr-xr-x. 1 fl fl  748 Apr 12  2018 sfcaffinity
-rwxr-xr-x. 1 fl fl  30K Apr 12  2018 sfcaffinity_config
-rw-r--r--. 1 fl fl  15K Apr 12  2018 sfcaffinity.py
-rwxr-xr-x. 1 fl fl 6.5K Apr 12  2018 sfcirqaffinity
-rw-r--r--. 1 fl fl 4.6K Apr 12  2018 sfcmask.py
drwxr-xr-x. 2 fl fl  108 Dec  3  2018 sh
-rwxr-xr-x. 1 fl fl 1.1K Apr 12  2018 zf_debug

## 搭建环境
locate crti.o
LIBRARY_PATH=/usr/lib64:$LIBRARY_PATH
export LIBRARY_PATH

./onload_build
## 执行安装
./onload_install
#加载 onload
onload_tool reload

## 开启 rx1 tx1 模式
## Ref: https://support.solarflare.com/docs/SF-103837-CD
## Adapters Software Support
sfboot --adapter=enp1s0f1 firmware-variant=ultra-low-latency
## 需要重启
sudo reboot now

## 查看即可显示
ethtool -i enp1s0f1
driver: sfc
version: 4.15.0.1012
firmware-version: 6.2.7.1001 rx1 tx1
expansion-rom-version:
bus-info: 0000:01:00.1
supports-statistics: yes
supports-test: yes
supports-eeprom-access: no
supports-register-dump: yes
supports-priv-flags: yes

卸载

#unload onload
onload_tool unload
#remove sfc
modprobe –r sfc
#if found any sfc rpm, then remove them
rpm -qa | grep sfc
rpm -e *sfc*.rpm
#unintall onload
./onload_misc/onload_uninstall

使用

OpenOnload有两种模式。

  • Spinning模式(busy-wait)中,加速进程的每个线程会占用一整个CPU core,始终处于waiting状态。通过htop可以看到该CPU的使用率为100%。spinning模式速度更快,但是要注意CPU core的数量。
  • Interrupt模式中,线程不会占用满一个CPU core,但可以将中断Interrupt放在一个CPU core。interrupt模式也有加速效果,理论上比spinning略差一些。当服务器上总线程数大于CPU core的数量时,interrupt可能优于spinning,需要测试来论证。

使用 spinning 模式加速应用

查看CPU core序号(注意,一般服务器是从0开始排序,也有不正常的版本,请查证。否则OpenOnload选择的CPU core可能不存在)

egrep "(id|processo).*:|^ *$" /proc/cpuinfo
onload -p latency taskset -c 3 ./[Application]
onload --profile=latency taskset -c 2 ./[Application]

其中,-c 参数选择 CPU core 的号码,也可以选择多个core:-c 2,3。选择core的数量与进程的线程数有关。

使用 internal 模式加速应用

onload ./[Application]

demo

所有运行的demo都在我们事先下载得到的压缩包里面。一般来说

  • files under the gnu directory are 32-bit (if these are built)
  • files under the gnu_x86_64 directory are 64-bit.

我们进入 gnu_x86_64 的文件夹即可。

cd scripts/
## 增加环境路径
export PATH="$PWD:$PATH"
## 使用 64 位进行编译
cd ../build/gnu_x86_64/tests/ef_vi/
## 先清理,然后安装
make clean && make

pwd
/root/openonload-201811/build/gnu_x86_64/tests/ef_vi

ls -alh

total 5304
-rw-r--r--. 1 root root      1 Nov 17 03:53 copy.depends
-rw-r--r--. 1 root root      0 Nov 17 03:53 copy.done
-rwxr-xr-x. 1 root root 343784 Nov 25 04:24 efforward
-rw-r--r--. 1 root root   2724 Nov 25 04:24 efforward.d
-rw-r--r--. 1 root root  79712 Nov 25 04:24 efforward.o
-rwxr-xr-x. 1 root root 387320 Nov 25 04:24 efforward_packed
-rw-r--r--. 1 root root   2745 Nov 25 04:24 efforward_packed.d
-rw-r--r--. 1 root root  86952 Nov 25 04:24 efforward_packed.o
-rwxr-xr-x. 1 root root 368680 Nov 25 04:24 efjumborx
-rw-r--r--. 1 root root   2670 Nov 25 04:24 efjumborx.d
-rw-r--r--. 1 root root  80384 Nov 25 04:24 efjumborx.o
-rwxr-xr-x. 1 root root 465904 Nov 25 04:24 eflatency
-rw-r--r--. 1 root root   5631 Nov 25 04:24 eflatency.d
-rw-r--r--. 1 root root 121064 Nov 25 04:24 eflatency.o
-rwxr-xr-x. 1 root root 326256 Nov 25 04:24 efrss
-rw-r--r--. 1 root root   2658 Nov 25 04:24 efrss.d
-rw-r--r--. 1 root root  67640 Nov 25 04:24 efrss.o
-rwxr-xr-x. 1 root root 421928 Nov 25 04:24 efsend
-rw-r--r--. 1 root root   5366 Nov 25 04:24 efsend_common.d
-rw-r--r--. 1 root root  33168 Nov 25 04:24 efsend_common.o
-rw-r--r--. 1 root root   5437 Nov 25 04:24 efsend.d
-rw-r--r--. 1 root root  51224 Nov 25 04:24 efsend.o
-rwxr-xr-x. 1 root root 427032 Nov 25 04:24 efsend_pio
-rw-r--r--. 1 root root   5446 Nov 25 04:24 efsend_pio.d
-rw-r--r--. 1 root root  45840 Nov 25 04:24 efsend_pio.o
-rwxr-xr-x. 1 root root 435640 Nov 25 04:24 efsend_pio_warm
-rw-r--r--. 1 root root   5563 Nov 25 04:24 efsend_pio_warm.d
-rw-r--r--. 1 root root  63160 Nov 25 04:24 efsend_pio_warm.o
-rwxr-xr-x. 1 root root 409200 Nov 25 04:24 efsend_timestamping
-rw-r--r--. 1 root root   5476 Nov 25 04:24 efsend_timestamping.d
-rw-r--r--. 1 root root  43816 Nov 25 04:24 efsend_timestamping.o
-rwxr-xr-x. 1 root root 410640 Nov 25 04:24 efsink
-rw-r--r--. 1 root root   2733 Nov 25 04:24 efsink.d
-rw-r--r--. 1 root root  97664 Nov 25 04:24 efsink.o
-rwxr-xr-x. 1 root root 369440 Nov 25 04:24 efsink_packed
-rw-r--r--. 1 root root   2736 Nov 25 04:24 efsink_packed.d
-rw-r--r--. 1 root root  65952 Nov 25 04:24 efsink_packed.o
-rw-r--r--. 1 root root    150 Nov 17 03:53 GNUmakefile
-rwxr-xr-x. 1 root root   5220 Nov 25 04:24 stats
-rw-r--r--. 1 root root   2623 Nov 25 04:24 utils.d
-rw-r--r--. 1 root root  79648 Nov 25 04:24 utils.o

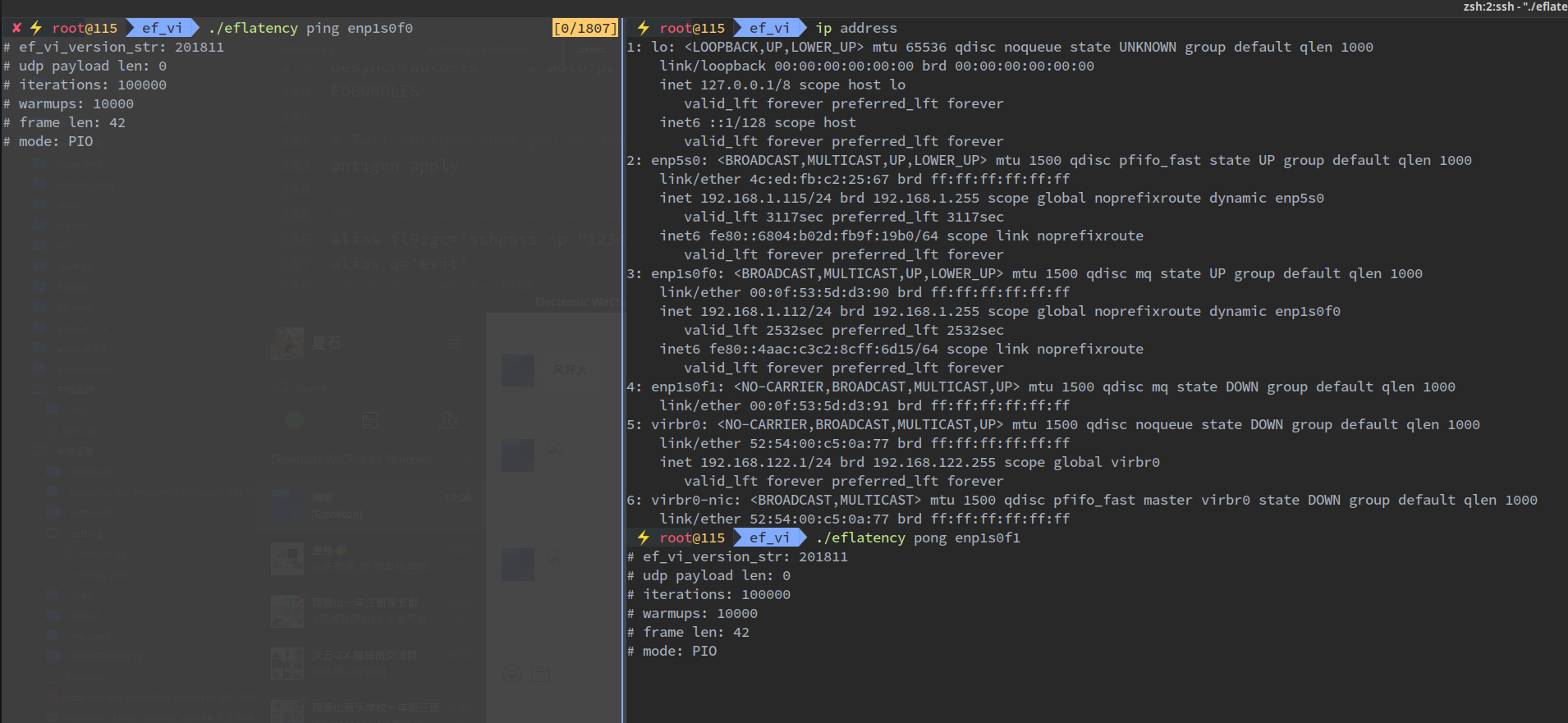

主要应用

测试

服务器与客户端

延时测试

网络架构

  • 两台机器都配备 Solarflare 网络适配器
  • 两台机器使用一根光纤线连接 Solarflare 接口
  • 分别为两块卡上的 Solarflare 接口配置一个 IP 地址, 使得它们之间可以通讯,使用 ping 命令验证连接
  • OpenOnload 都分别安装到两台机器上
  • Solarflare 的 sfnettest 和 NetPerf 都分别安装到两台机器上

软件安装

安装 openonload
## 进入相应的文件夹
cd openonload-201811/

## 源代码存放
cd scripts/

## 搭建环境
./onload_build
## 执行安装
./onload_install
#加载 onload
onload_tool reload
安装 Netperf
wget http://repo.iotti.biz/CentOS/7/x86_64/netperf-2.7.0-1.el7.lux.x86_64.rpm
rpm -i netperf-2.7.0-1.el7.lux.x86_64.rpm
安装 sfnettest
wget https://www.openonload.org/download/sfnettest/sfnettest-1.5.0.tgz
tar xvf sfnettest-1.5.0.tgz
cd sfnettest-1.5.0/src
make
调优设置
## 停止 cpuspeed 服务以避免进入省电模式,降低CPU时钟速度
systemctl stop cpuspeed

## 停止 irqbalance 服务器以防止 OS 在可用的CPU内核之间重新平衡中断
systemctl stop irqbalance

## 停止防火墙辐射器以消除简介消耗
systemctl stop firewalld

## 禁用 interrupt moderation
ethtool -C enp1s0f1 rx-usecs-irq 0 adaptive-rx off

## 启动低延时配置:tuned-adm
tuned-adm list
tuned-adm profile network-latency

## 防止系统进入 CPU 低功耗模式 cstates
## 参考博文: https://williamlfang.github.io/post/2019-12-11-linux-调整-cstate-实现cpu超频/

sfnettest 延时测试

参数说明
  • --profile=latency:测试延时模式
  • taskset -c 1:绑定 cpu core 的号码 1
  • --maxms=10000 指发送的最大数据包大小
  • --affinity "1;1" 指使用 core 1 发送,使用 core 1 接收(可以选不同的core)
服务器

首先,在服务器开启

onload --profile=latency taskset -c 1 ./sfnt-pingpong --maxms=10000 --affinity 1,1

运行成功后等待客户端接入

oo:sfnt-pingpong[17337]: Using OpenOnload 201811 Copyright 2006-2018 Solarflare Communications, 2002-2005 Level 5 Networks [2]
sfnt-pingpong: server: waiting for client to connect...
TCP 测试
onload --profile=latency taskset -c 1 ./sfnt-pingpong --maxms=10000 --affinity 1,1 tcp 127.0.0.1

运行结果如下

oo:sfnt-pingpong[17093]: Using OpenOnload 201811 Copyright 2006-2018 Solarflare Communications, 2002-2005 Level 5 Networks [4]
# cmdline: ./sfnt-pingpong --maxms=10000 --affinity 1,1 tcp 127.0.0.1
# version: 1.5.0
# src: 8dc3b027d85b28bedf9fd731362e4968
# date: Wed Dec 11 02:19:49 EST 2019
# uname: Linux localhost.localdomain 3.10.0-1062.4.1.el7.x86_64 #1 SMP Fri Oct 18 17:15:30 UTC 2019 x86_64 x86_64 x86_64 GNU/Linux
# cpu: model name   : Intel(R) Core(TM) i5-8500 CPU @ 3.00GHz
# lspci: 01:00.0 Ethernet controller: Solarflare Communications SFC9120 10G Ethernet Controller (rev 01)
# lspci: 01:00.1 Ethernet controller: Solarflare Communications SFC9120 10G Ethernet Controller (rev 01)
# lspci: 05:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller (rev 15)
# enp1s0f0: driver: sfc
# enp1s0f0: version: 4.15.0.1012
# enp1s0f0: bus-info: 0000:01:00.0
# enp1s0f1: driver: sfc
# enp1s0f1: version: 4.15.0.1012
# enp1s0f1: bus-info: 0000:01:00.1
# enp5s0: driver: r8169
# enp5s0: version:
# enp5s0: bus-info: 0000:05:00.0
# virbr0: driver: bridge
# virbr0: version: 2.3
# virbr0: bus-info: N/A
# virbr0-nic: driver: tun
# virbr0-nic: version: 1.6
# virbr0-nic: bus-info: tap
# ram: MemTotal:        7872940 kB
# tsc_hz: 2999998960
# LD_PRELOAD=libonload.so
# onload_version=201811
# EF_TCP_FASTSTART_INIT=0
# EF_POLL_USEC=100000
# EF_TCP_FASTSTART_IDLE=0
# server LD_PRELOAD=libonload.so
# percentile=99
#
#   size    mean    min median  max %ile    stddev  iter
    1   7668    6472    7556    35283   8855    522 650000
    2   7064    6133    7010    257486  8064    469 705000
    4   6964    6123    6982    16029   7967    369 716000
    8   6915    6093    6911    16987   7923    401 721000
    16  6904    6113    6866    22018   7916    403 722000
    32  6888    6118    6827    15773   7875    384 723000
    64  6880    6114    6820    16818   7862    390 724000
    128 6895    6172    6833    14807   7890    397 723000
    256 6909    6122    6850    20069   7911    391 721000
    512 6861    6118    6805    308711  7840    527 726000
    1024    6869    6139    6806    27147   7875    407 725000
    2048    7124    6391    7064    19685   8141    412 699000
    4096    7397    6523    7357    20114   8455    437 674000
    8192    7675    6839    7612    19902   8757    432 649000
    16384   8481    7628    8417    17966   9577    412 588000
    32768   10136   9162    10063   19106   11376   477 492000
    65536   20403   18129   20392   41106   22849   1070    245000

测试结果按照发送数据包大小进行排列,输出结果为 RTT(round-trip-time)/2的平均延时时间,单位(ns),并且列出了最小值、中位数、最大值、百分位以及标准差。比如一个 32 字节的数据包

#   size    mean    min median  max %ile    stddev  iter
    32  6888    6118    6827    15773   7875    384 723000
  • 平均延时为 6.888us
  • 最快延时 6.118us
  • 最长延时 7.875us
  • 标准差为 0.364us
UDP 测试

执行命令

onload --profile=latency taskset -c 1 ./sfnt-pingpong --maxms=10000 --affinity 1,1 udp 127.0.0.1

得到结果:果然 UDP 大法好

oo:sfnt-pingpong[17576]: Using OpenOnload 201811 Copyright 2006-2018 Solarflare Communications, 2002-2005 Level 5 Networks [6]
# cmdline: ./sfnt-pingpong --maxms=10000 --affinity 1,1 udp 127.0.0.1
# version: 1.5.0
# src: 8dc3b027d85b28bedf9fd731362e4968
# date: Wed Dec 11 02:27:16 EST 2019
# uname: Linux localhost.localdomain 3.10.0-1062.4.1.el7.x86_64 #1 SMP Fri Oct 18 17:15:30 UTC 2019 x86_64 x86_64 x86_64 GNU/Linux
# cpu: model name   : Intel(R) Core(TM) i5-8500 CPU @ 3.00GHz
# lspci: 01:00.0 Ethernet controller: Solarflare Communications SFC9120 10G Ethernet Controller (rev 01)
# lspci: 01:00.1 Ethernet controller: Solarflare Communications SFC9120 10G Ethernet Controller (rev 01)
# lspci: 05:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller (rev 15)
# enp1s0f0: driver: sfc
# enp1s0f0: version: 4.15.0.1012
# enp1s0f0: bus-info: 0000:01:00.0
# enp1s0f1: driver: sfc
# enp1s0f1: version: 4.15.0.1012
# enp1s0f1: bus-info: 0000:01:00.1
# enp5s0: driver: r8169
# enp5s0: version:
# enp5s0: bus-info: 0000:05:00.0
# virbr0: driver: bridge
# virbr0: version: 2.3
# virbr0: bus-info: N/A
# virbr0-nic: driver: tun
# virbr0-nic: version: 1.6
# virbr0-nic: bus-info: tap
# ram: MemTotal:        7872940 kB
# tsc_hz: 2999999520
# LD_PRELOAD=libonload.so
# onload_version=201811
# EF_TCP_FASTSTART_INIT=0
# EF_POLL_USEC=100000
# EF_TCP_FASTSTART_IDLE=0
# server LD_PRELOAD=libonload.so
# percentile=99
#
#   size    mean    min median  max %ile    stddev  iter
  0   6216    5434    6120    27259   7171    452 800000
  1   5929    5424    5892    24829   6764    310 839000
  2   5841    5272    5844    19435   6659    289 852000
  4   5809    5261    5798    14376   6647    349 857000
  8   5793    5232    5776    15298   6636    354 859000
  16  5746    5248    5715    13638   6570    349 866000
  32  5762    5255    5735    141833  6587    382 864000
  64  5716    5246    5686    20291   6553    367 871000
  128 5697    5231    5663    14968   6526    356 874000
  256 5692    5212    5665    368520  6528    528 874000
  512 5687    5251    5654    17424   6486    330 875000
  1024    5788    5307    5748    13709   6590    336 860000
  1472    5824    5341    5788    13610   6634    343 854000
  1473    5827    5333    5793    21815   6637    343 854000
  2048    5895    5449    5868    17404   6696    304 844000
  4096    6091    5566    6055    17905   6951    377 817000
  8192    6737    6056    6719    27552   7744    422 739000
  16384   7414    6852    7359    250894  8421    506 672000
  32768   8869    8177    8785    22277   10025   440 562000
